Pixel Tester & Controller
- In stock, ready to ship
SP101E Wireless controller operating instructions
1. Features:
1. RF Remote control, with long distance, wire connection is simple and very easy to use.
2. Support almost every kind of one-wire or two-wire LED-DRIVER-IC ;(Can be customized)
3. With 125 kinds of patterns, which are vivid and beautiful;
4. Each controller can control up to 2450 pixels;
5.Preventing reverse connection of power supply.
2. Remote Control
1. Functions Of Each Button:
|
ON/OFF |
ON or OFF |
|
MODE+ |
Switching patterns forwardly |
|
MODE- |
Switching patterns backwardly |
|
SPEED+ |
Switching speed forwardly |
|
SPEED- |
Switching speed backwardly |
|
AUTO |
Run internal patterns automatically |
|
NUM+ |
Add the number of pixels on each section |
|
NUM- |
Decreased the number of pixels on each section |
|
SEC+ |
Add number of section. |
|
SEC- |
Decreased number of section. |
|
MATCH |
Match the Remote control with the receiving controller |

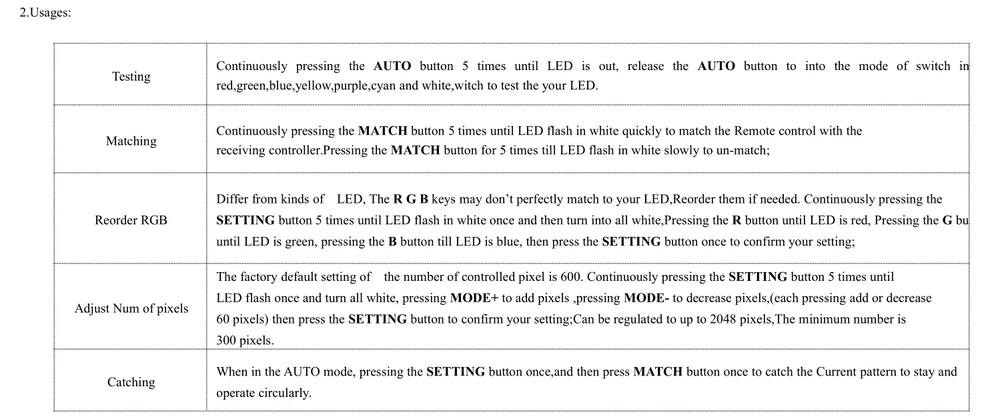

2. Testing and Matching:
Pressing and hold the AUTO button for up to 3 seconds until LED is out, release the AUTO button to into the mode of switching in red, green, blue, yellow, purple, cyan and white, which to test the your LED's.
Pressing and hold the MATCH button for up to 3 seconds to match the Remote control with the receiving controller. Pressing and hold the MATCH button for up to 3 seconds to un-match.
3. Sections:
Some of the patterns run in several sections, each section is the same. User can make the number of sections as follow: 5, 10, 15, 20, 25, 30,35. Pixel number of each section can be chosen as follow: 20, 30, 40, 50, 60, 70 .
Sum of pixels = Sections*Number per section
4. User Setting Saving:
User’s each pressing on the button can be saved by the controller automatically. When the controller is power off, next time power up, it will work the way as the same as before.
3. Receiving Controller：
Can be customized to support almost every kind of one-wire or two-wire LED-DRIVER-IC. User can specify to support which IC before our delivery, and also, the user can modify the status of R5,R6,R7,R8 on the PCB to meet their needs:
|
Actions |
To support IC |
|
Short none of R5,R6,R7,R8 |
WS2811 |
|
Short R5,breakR6,R7,R8 |
WS2801 |
|
Short R6,breakR6,R7,R8 |
LPD6803 |
|
Short R7,breakR6,R7,R8 |
LPD8806 |
|
Short R8,breakR5,R6,R7 |
UCS9812 |
|
Short R5,R6,breakR7,R8 |
UCS1903,APA104 |
|
Short R6,R7,breakR5,R8 |
APA102 |
|
Short R7,R8,breakR5,R6 |
TM1804,TM1809 |
The receiver controller has two kinds of working voltage :5V-supply-voltage and 12V-supply-voltage.
Cautions: Please make sure the power supply voltage is match to your controller before you power it.
